Crude palm oil extraction machine

DATE：2017-09-20 11:40/ Palm oil refinery/ Chat Online

We are professional manufacturers of crude palm oil extraction machine,the crude palm oil extraction machine we produce can help you get more crude palm oil.The crude palm oil extraction machine has the advantage of low consumption and energy-saving.

Production capacity of crude palm oil extraction machine:
1. 1-2-3-5TPH small crude palm oil extraction machine
2. 15-30-45-60-80-120TPH big capacity crude palm oil extraction machine

Crude palm oil extraction machine

Work flow of crude palm oil extraction machine:
1.Raw material rception:as for the first step of crude palm oil extraction machine,collecting the FFB and convey by trucks, then pour the fluster into the discharge door after weighed.Open the gate of the discharge door, then the palm fruits will fall into the fruit basket car or conveyor.

Crude palm oil extraction machine raw material reception

2.Sterilizing:FFB are airtight sterilized in sterilizer, injecting direct steam to heat 60mins. The purpose is to prevent enzymes breaking down, avoiding FFA in oil further increasing. Meanwhile, the temperature will make the fruits soften, it is easy for threshing and the follow-up crude palm oil extraction machine, also reducing the damaged kernel.

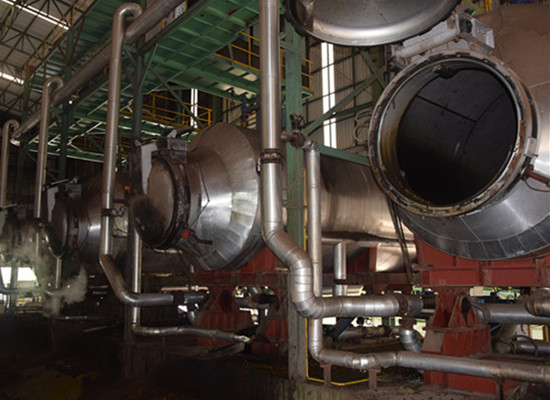

Crude palm oil extraction machine sterilizing

3.Threshing:the purpose of threshing of crude palm oil extraction machine is to separate the palm fruit from the FFB. The drum type thresher is the usual palm oil press production machine to separate the fruit. The separated oil palm fruit is sent into the pressing section. Empty fruit bunch be ejected to the yard as slipcover or burning in the locale as fertilizer.

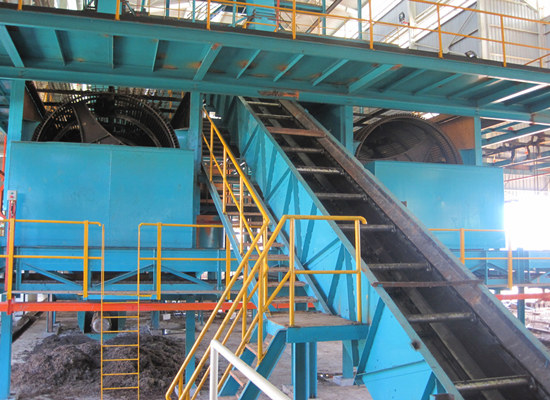

Crude palm oil extraction machine threshing

4.Digesting&pressing:the purpose of digester is to separate the pulp and nut and crush the palm pulp. At the same time, the direct steam is used to adjust the water content and temperature in the crasher. After above processing of crude palm oil extraction machine, the palm pulp become soft and cell is broken. Then it is sent to continuous screw press. After pressing by the crude palm oil extraction machine, oil palm fruit is divided into two parts: the mixture of oil, water and solid impurities, and the press cake (fiber and nut).

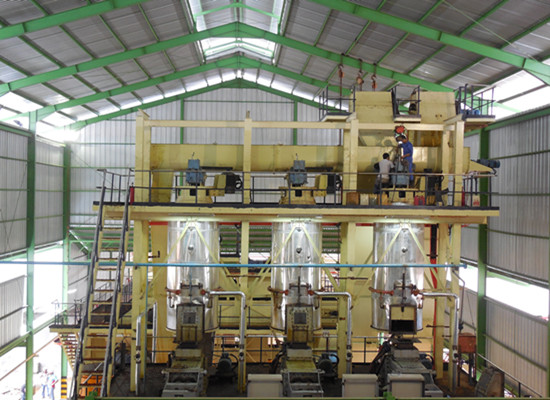

Crude palm oil extraction machine digesting&pressing

5.Oil clarification: crude palm oil first diluted with water washing, through settlement and filtration, the fiber material removed from the oil, and then carry out continuous settlement, the whole divided into two parts: oil and sediment. Oil by centrifugal separation and through vacuum drying pumped into the storage tank for storing; oil sediment by filtration and dirt oil separation, oil process second settlement, dirt oil mixture process clarification separation.

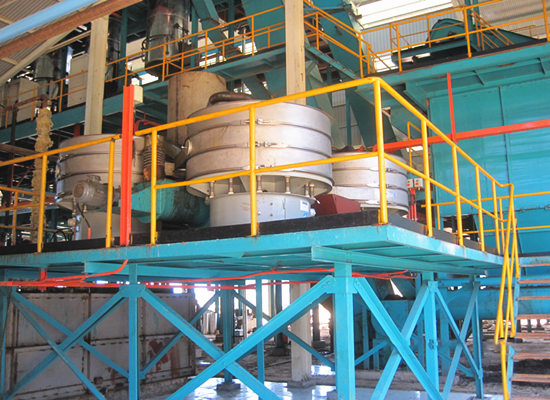

Crude palm oil extraction machine oil clarification

6.Kernel recovery: first kernel was released by the ripple mill. The broken mixture enters into broken mixture separation system; separation system adopts two stage separation and water separation. After separation, shell is sent to the warehouse for temporary storage, as boiler room fuel when necessary; the moisture content of separation kernel falls to below 7% through the hot air to dry. Dried kernel is sent to kernel storage warehouse for storing.This is the final section of crude palm oil extraction machine.

Crude palm oil extraction machine kernel recovery

After processing by our crude palm oil extraction machine,the crude palm oil can be sold or deeply processed.we can design and manufacture crude palm oil extraction machine of different capacities according to your requirements.
