5tph small scale palm oil processing machine prototype
Henan Glory Company is a company specializing in the production of palm oil and palm kernel oil processing machinery and equipment, we can supply small scale to large scale palm oil processing machine. In order to facilitate the customer real inspection equipment and learn about the equipment appearance and performance, we specially set up a set of 5tph small scale palm oil processing machine prototype in our factory. Now I will introduce it to you in detail.
Small scale palm oil processing machine prototype in our factory
5tph small scale palm oil processing machine prototype is developed based on the large scale palm oil mill plant's extraction technology in Malaysia and Indonesia. It has the main characteristics of the large scale palm oil processing machine and has its own unique advantages. 5tph small scale palm oil processing machine prototype has the features of saving production time and labor cost, easy operation and maintenance, as well as the ability to sterilize completely and improve oil yield.
5tph small scale palm oil processing machine processing process:

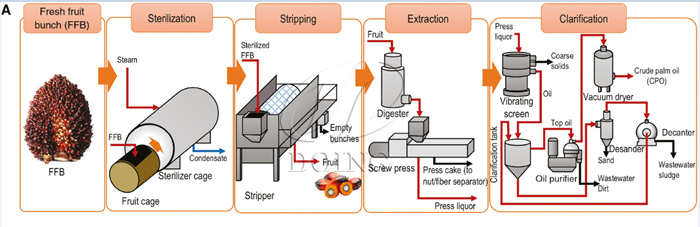

Palm oil processing process diagram
About the 5tph small scale palm oil processing machine prototype mainly included 6 steps:
1, Sterilize the palm fruit;

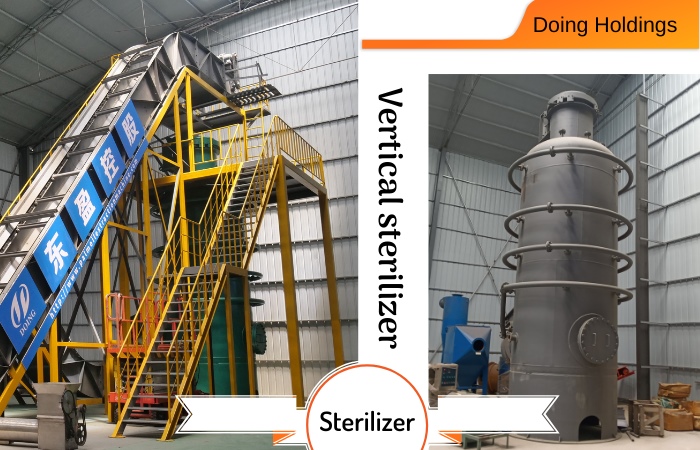

Palm fruit sterilizer machine
We configure the vertical-steam sterilizer to break the enzymes in fruit, and avoid the increasing of the FFA content in oil by injecting 300KPa direct steam. After the sterilize the FFB, the palm fruit will be easy to separate from palm fruit bunches, and this step can also increase the humidity of palm fruit, it will be easy to get the crude palm oil when press the palm fruit.
Remark: FFB (fresh palm fruit bunches) must sterilize within 48 hours, the otherwise the FFA (free fatty acids) will increase quickly in palm fruit, it will impact the crude palm oil quality and sell.
2, Separate palm fruit from palm fruit bunches;
Drum type palm fruit thresher machine is the most widely used machine in the palm fruit threshing process, it is an automatic machine, it will separate from the FFB to palm fruit. It has the features of the high work efficiency and low manpower cost.

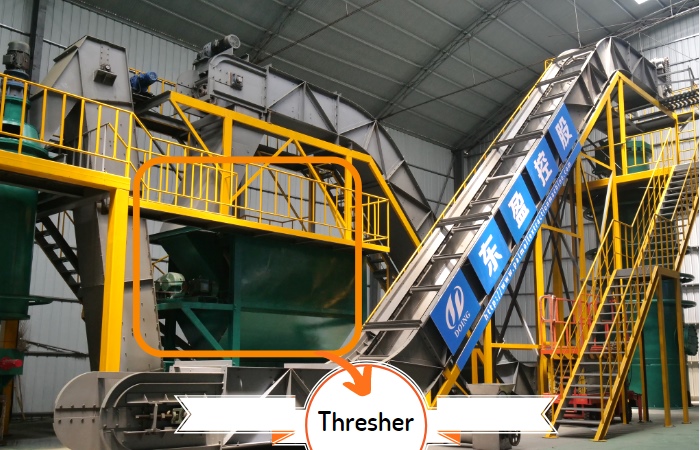

Palm fruit thresher machine
3. Digest the palm fruit to palm pulp;
The digester will stir the palm fruit, on the one hand, it will separate the palm fruit pulp and palm nut, on the other hand, it can mash the palm fruit to palm pulp. So that we can press the palm fruit pulp and get the crude palm oil better. (Read also: Professional palm fruit digester machine, vertical palm fruit digester machine)
4. Press palm oil out;
Same as large scale palm oil processing plant, the equipment used in 5tph small scale palm oil processing machine prototype is also double screw palm oil press machine. Through the squeeze of the mechanical force of the double screw palm oil press, we can get two kinds of products, the one is crude palm oil, the other is palm nut with fiber. (Read also: 1tph, 5tph, 10tph, 15tph double screw palm oil press machine)

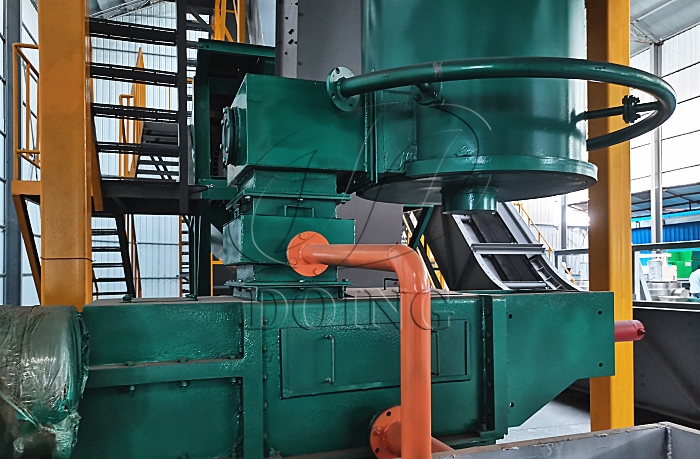

Palm fruit digester and palm oil presser
5, Filter crude palm oil;

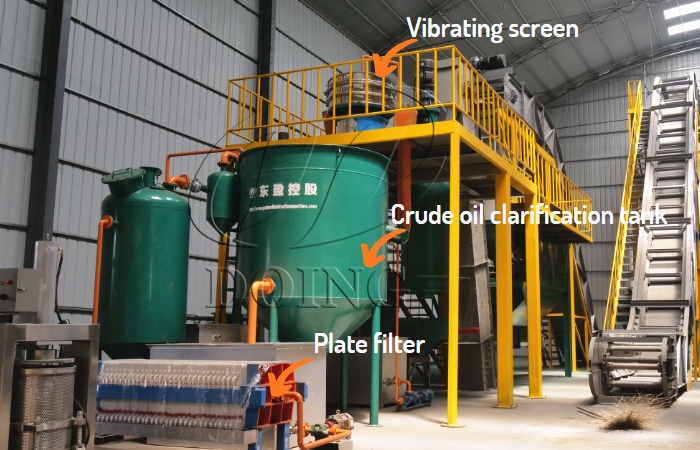

In order to achieve better filtering effect and get high quality palm oil, this set of 5tph small scale palm oil processing machine prototype adopts the three-step filtration method to filter the palm oil.
First filtration——Use vibrating screen to remove the big impurities like fiber.
Second filtration——Use crude oil clarification tank to remove small impurities, like the sand and stone, etc by settling.
Third filtration—— Use plate filter to remove the tinny impurities and some moisture.
Small scale palm oil processing machine
6, Dryer the palm oil;
The presence of moisture in the palm oil will not only make the oil hydrolysis and rancidity, which will affect the quality of the palm oil, but also shorten the storage time of the palm oil. So we usually need to use vacuum dryer system to remove the moisture in the crude palm oil to get more high quality crude palm oil.
Henan Glory Company did the palm oil manufacturing equipment for over 10 years, our machines already exported more than 60 countries all over the world. If you want to build up your own palm oil processing plant or start your own palm oil processing business, please feel free to contact with us for more detailed information of palm oil processing machine. We are pleased to offer you the most professional suggestions and services. What's more, If you want to see the small scale palm oil processing machine prototype in person before buying, welcome to visit our factory at any time.
