What are the specifications and capacity of Henan Glory's palm kernel cracker and shell separator?

For palm oil processors aiming to maximize efficiency and kernel recovery, Henan Glory Company offers advanced palm kernel cracker and shell separator systems. In this article, we delve into the specifications and capacity of Henan Glory's palm kernel cracker and shell separator, illustrating why they are the preferred choice for businesses worldwide.

Key Components and Specifications of Henan Glory's Palm Kernel Cracker and Shell Separator

1.Magnetic Separator

On the one hand, it can help remove metallic impurities from palm kernels before cracking, protecting downstream machinery and ensuring product purity. On the other hand, the magnetic field strength can be adjusted to handle varying feed materials.

2. Palm Kernel Grading Machine:

It mainly classifies palm kernels according to their size to optimize the subsequent palm kernel cracking efficiency. The vibrating screen has adjustable mesh size (typically 10-25 mm) to achieve accurate classification. Its processing capacity is generally 1-3 tons/hour, depending on the size distribution of the palm kernel.

Palm kernel grading machine

3.Palm Kernel Cracker

The use of this palm kernel cracker can effectively cracking the palm kernel, with a cracking rate of up to 95-98%, minimizing the damage of the palm kernels. In addition, the agitator and main shaft speed (500-1,500 rpm) can be adjusted during the operation of the palm kernel cracker to adapt to different palm kernel sizes and moisture content. Its power is generally 4-15 kW electric motor, or a diesel engine can also be optionally equipped (for off-grid operation). Besides, the palm kernel cracker's output ranges from 1-2 tons/hour, and models suitable for small, medium and large palm kernel oil processors are available.

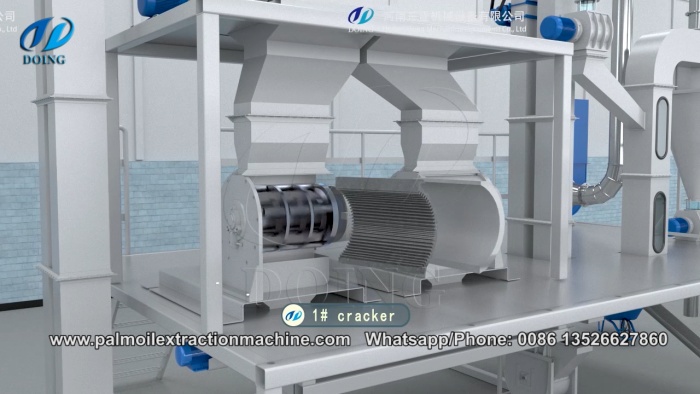

Palm kernel cracker

4.Wind Separation Column

The wind separation column can clearly see the palm kernel and shell separation process. It is also convenient to check whether the palm kernel cracker and shell separator can operate normally at the same time.

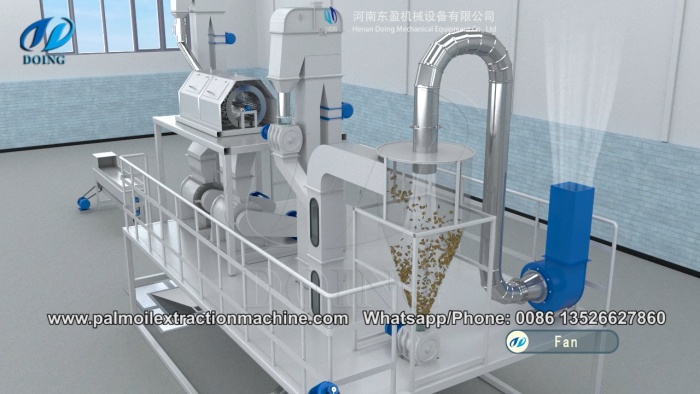

5.Cyclone Separator

It uses airflow to separate palm kernels from shells with a separation accuracy of up to 95%. The wind speed and air volume can be adjusted during operation to ensure the best separation effect. It is worth mentioning that the cyclone separator is made of corrosion-resistant materials, with a sturdy and durable structure and a long service life.

Cyclone separator

Capacity and Performance of Henan Glory's Palm Kernel Cracker and Shell Separator

(1) Small and Medium-Sized Palm Kernel Cracker and Shell Separators: The production capacity is 2-3 tons/hour, suitable for limited raw material supply or small-scale production needs.

(2) Medium and Large-Sized Palm Kernel Cracker and Shell Separators: The production capacity is 4-6 tons/hour, suitable for large-scale production or sufficient raw material supply.

Advantages of Henan Glory's Palm Kernel Cracker and Shell Separator

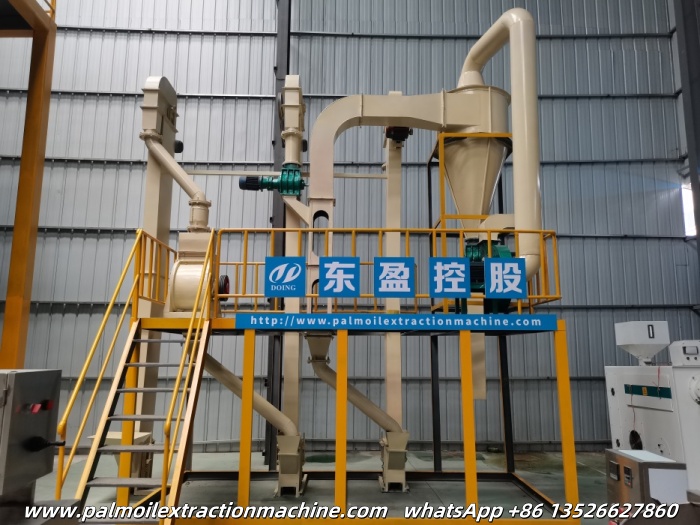

Henan Glory's palm kernel cracker and shell separator

(1) High Kernel Recovery: Minimizes waste with low kernel breakage rates and efficient separation.

(2) Energy Efficiency: Optimized power consumption reduces operational costs.

(3) Low Maintenance: Durable components and easy-to-replace parts ensure minimal downtime.

(4) Customizable Solutions: Tailor palm kernel cracker and shell separator to your specific needs, including automation and integration with existing systems.

In short, for businesses looking to optimize their palm kernel processing operations, Henan Glory's palm kernel cracker and shell separators offer unmatched performance, durability and efficiency. If you would like to learn more about the palm kernel cracker and shell separator, contact us today!
