Demystifying the crude palm oil clarification process in large-scale mills

Do you know how complicated is the crude palm oil clarification process in large-scale mills? For tries its best to recover crude palm oil and reduce the residual oil rate, it has designs of multi-stage crude oil treatment and multi-stage crude oil circulation recycling systems. Because for the owner of large-scale palm oil mills, MORE CRUDE OIL WASTE = LOSS PROFITS.

Therefore, the effect of the crude palm oil clarification process in large-scale mills directly impacts your bottom line, operating costs, and your ability to deliver a consistent, high-quality crude palm oil to the refining market. Want to know it in details? You can see the below 3D animation of our company.

This video shows the 60t/h palm oil mill plant working process, the palm oil clarification is divided into two parts: from 1'20'' to 2'04", it shows the sludge crude oil clarification, filtration, circulation and recycling systems, and from 2'05" to 2'23", shows the clear oil clarification process, and then the crude palm oil will be pumped into oil tanks for storage.

For you better understanding, I will introduce them for you with words.

First, after palm fruits are pressed and digested, the mixture that emerges contains oil, water and solid impurities. The mixture enters the oil clarification tank, where it separates naturally under the influence of gravity. The lighter palm oil floats to the top, while water and solids impurities sink which will be transported to sludge oil pit regularly.

And, the lighter crude palm oil will be pumped into rotary vibrating screen to filter, then go into large vertical clarification tanks. Here the crude palm oil will be sinked and become clear oil and sludge oil.

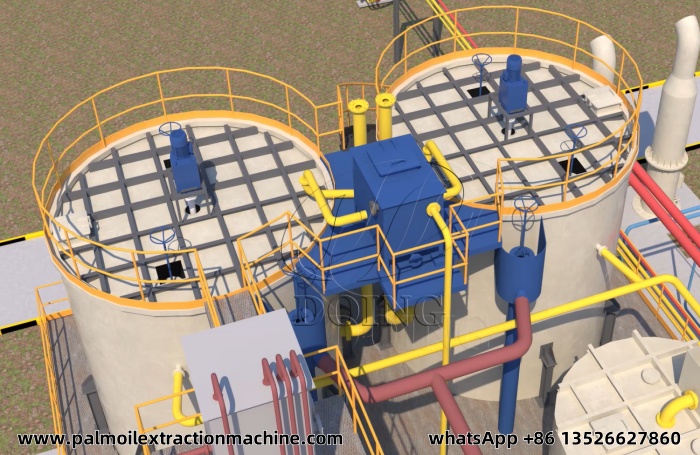

Large vertical clarification tanks

The sludge crude palm oil accumulated at the bottom of the vertical clarification tank is filtered by multi-stage oil cyclone, then into three-phase decanter centrifuge, for getting oil, water and sludge. The three things will be treated by muti-stage different process to recycle oil in them.

Recycled crude palm oil will go into oil clarification tank and be filtered and recycled again with fresh crude palm oil together.

The clear crude palm oil in large vertical clarification tanks will be vacuum dehydrated and pumped into oil tanks for storage.

Why the profits is high of large palm oil mills? The answer is in the best design of crude palm oil clarification process. If you want improve the crude palm oil yield of your oil mills to fulfill palm oil maximum value, contact us directly. Our engineers will give you best design solution.
