What Is the Main Role of a Steam Boiler in a Palm Oil Mill?

A steam boiler is the core thermal energy equipment of a palm oil mill. It provides high-temperature process steam for sterilization, digestion, clarification, and drying. Additionally, it generates high-pressure steam to drive turbines for mill-wide electricity. Without a reliable steam boiler, palm oil extraction efficiency drops, oil quality degrades, and the mill cannot operate efficiently.

Powering Your Processing Stations (From FFB to Crude Oil)

Thermal energy is required at every stage of the palm oil milling process. A high-efficiency steam boiler supports your production in five critical sections:

(1) Sterilizing Station: This is your biggest steam consumer. The saturated steam generated by the steam boiler is injected into sterilizer vessels to boil the fruit bunches. This process softens the fruitlets for easier detachment during threshing. It also deactivates enzymes to prevent rancidity and maintain oil quality.

(2) Digesting Station: The steam boiler supplies direct steam into the fruit digester to heat the palm fruits. The resulting condensate water helps the oil flow smoothly and improves digestion efficiency.

(3) Clarification Tank: Crude palm oil thickens and curdles at room temperature, making it difficult to pump through pipes. Continuous steam heating keeps the oil in a liquid state for proper separation.

(4) Vacuum Drying System: Residual water in crude palm oil shortens its storage life. The drying system uses steam to heat the oil under a vacuum. This evaporates the water, which is then removed by a vacuum pump, protecting your final product from degradation.

(5) Palm Oil Mill Heating Systems: Steam lines are connected to main palm oil processing machinery, distribution channels, and oil storage tanks to keep the oil warm and flowing throughout the entire production line.

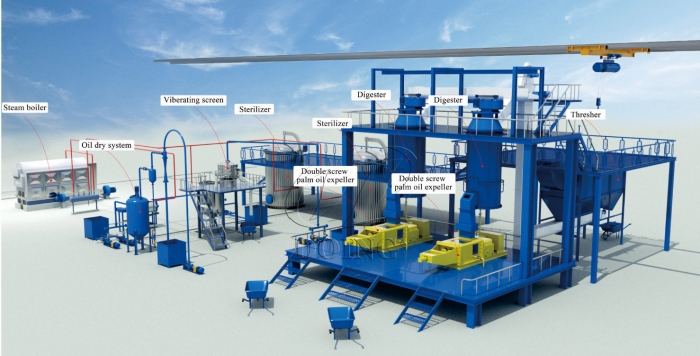

The palm oil mill

Free Electricity: Turning Waste into Power

If your palm oil mill operates in a remote area where grid electricity is unstable or expensive, a well-designed steam boiler can provide a definitive solution by establishing a self-sufficient energy cycle.

(1) Driving the Turbine: The boiler generates high-pressure superheated steam to drive a Steam Turbine Generator, creating free electricity for your conveyors, presses, and lights.

(2) Exhaust Steam Recycling: After generating power, the low-pressure exhaust steam is not wasted. It is piped directly back to your sterilization and heating stations. This efficient design pushes the system's thermal efficiency above 80%.

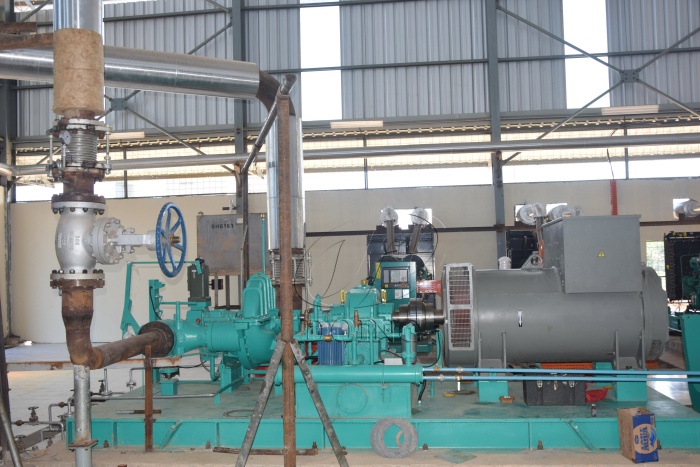

The Turbine in palm oil mills

Smart Fueling: Zero Fuel Cost Operations

What makes a steam boiler truly valuable for a palm oil mill? Your fuel is 100% free – your mill’s own waste.

Taking the biomass steam boilers manufactured by Henan Glory Company as an example, they are specifically designed to burn the solid waste by-products generated by your palm oil mill every day:

(1) Mesocarp Fiber: The stringy material left after pressing the palm fruit. It forms the primary daily fuel supply.

(2) Palm Kernel Shell (PKS): The hard shell left after cracking the nuts. PKS has a higher heating value and is mixed with the fiber to maintain steady steam boiler combustion.

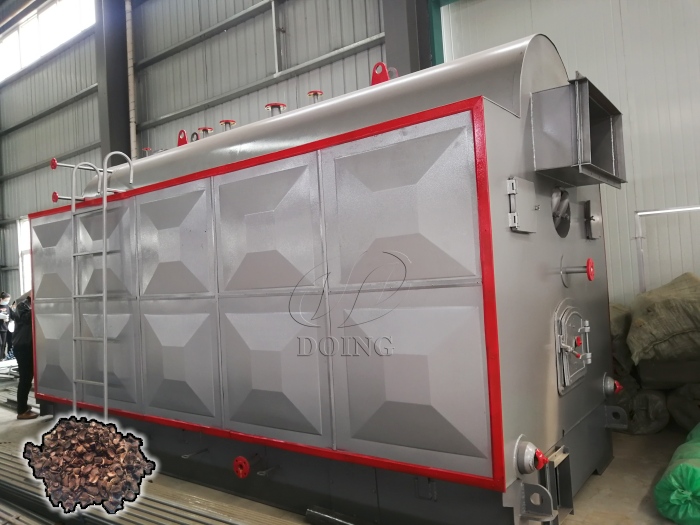

Henan Glory Company's biomass steam boiler

By burning a calculated mix (typically 70% fiber and 30% shell, depending on your FFB quality), your palm oil mill becomes largely energy self-sufficient. You do not need to buy diesel or external coal.

What are the Common Operational Challenges?

(1) Slagging and Clinkering: Palm biomass contains alkali metals like potassium and silica. At high furnace temperatures, these minerals melt and form hard deposits (clinkers) on the grates and tubes. This reduces heat transfer and requires regular mechanical cleaning.

(2) Water Treatment Management: Raw water contains dissolved minerals. Without water softening systems and chemical dosing, scale builds up inside the boiler tubes. This causes overheating, localized tube failures, and lower steam quality.

How Henan Glory Solves This for You:

Henan Glory doesn’t just sell steam boilers; we design palm oil processing solutions. Our advanced biomass steam boilers feature specialized reciprocating or dumping grates that allow continuous ash removal, preventing clinker buildup even when burning wet fiber. Plus, we provide integrated water softening systems to ensure your steam boiler runs safely for years without unexpected shutdowns.

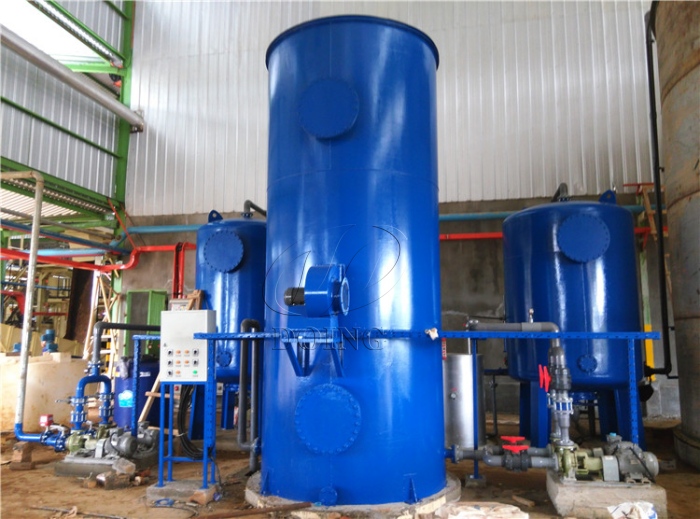

The integrated water softening systems

In conclusion, the steam boiler is an indispensable component that must work in perfect harmony with your palm oil processing machinery. Are you planning to build a new palm oil mill, or looking to upgrade your current boiler to save on fuel and maintenance? Henan Glory is always ready to assist you. Welcome to contact our expert team today for tailor-made biomass steam boilers and complete palm oil extraction equipment designed for maximum operational efficiency.
