1tph small scale palm oil extraction plant project in Indonesia

Date: March 18, 2026/ Project/ Chat online/ Technical support

The 1tph small scale palm oil extraction plant ordered by an Indonesian client was completed and successfully commissioned on March 15, 2026. The client was highly satisfied with the stable operation of the 1tph small scale palm oil extraction plant, the compact frame type design, and Henan Glory Company's professional installation and technical support services.

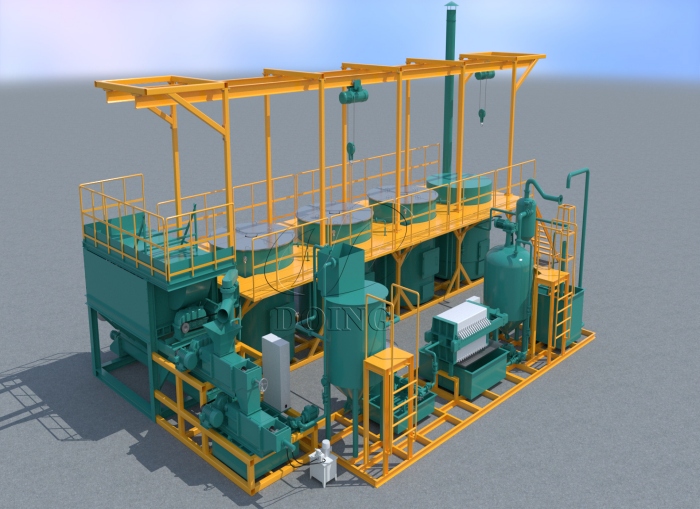

1TPH Small Scale Palm Oil Extraction Plant Configuration

Processing Stage	Core Equipment	Primary Function & Effect on Product
Sterilization	Palm Fruit Sterilizer	Inactivates lipases to prevent rising FFA levels and softens the fruit bunches.
Threshing	Drum Thresher	Uses physical rotation and collision to efficiently separate individual palm fruits from the bunches (FFB).
Digestion	Digester	Reengineered from a double screw palm oil press to thoroughly crush the pulp and break open the oil cells for optimal extraction.
Pressing	Double Screw Palm Oil Presser	Delivers continuous mechanical squeezing to maximize oil yield while maintaining low residual oil content in the fiber–kernel mixture.
Clarification	Oil Clarification Tank, Vibrating Screen & Plate and Frame Filter	Settles, screens, and filters the crude palm oil to remove heavy silt, fibers, and organic impurities.
Drying	Vacuum Drying System	Rapidly removes moisture under vacuum conditions to guarantee low moisture content and extend oil shelf life.

Project Consultation & Solution Recommendation (Sept - Oct 2025)

The client first contacted us on September 29, 2025. Initially, he expressed considerable interest in both the 1tph and 5tph small scale palm oil extraction plants and wanted to understand the differences in investment cost, production capacity, and factory requirements. Based on his budget and local project conditions, we recommended the 1tph small scale palm oil extraction plant solution, which received positive feedback from him. Afterward, he further consulted us about 1tph small scale palm oil extraction plant equipment pricing, shipping arrangements, installation, and commissioning services.

During communication, the client expressed concerns about complicated installation work and long commissioning periods after equipment arrival. To alleviate these concerns, we introduced our 1tph small scale palm oil extraction plant and explained its advantages in detail — for example, by sharing operation videos and project case demonstrations, we showed the convenience of completing most installation and commissioning work before shipment, allowing the equipment to be used immediately after arrival with simple power connection and auxiliary preparation. This efficient and user-friendly solution perfectly matched his requirements and quickly attracted his strong interest. Finally, he confirmed the order and completed payment on October 27, 2025.

The 1tph small scale palm oil extraction plant

Equipment Manufacturing and Shipment (Oct - Dec 2025)

After receiving the payment, our factory immediately arranged customized production according to the client’s project requirements. During the production process, we regularly updated him with equipment manufacturing photos and videos to ensure full transparency. Before shipment, all equipment underwent strict testing and trial operation inside our factory to ensure stable performance. After cleaning the machines thoroughly, we provided detailed inspection photos and operation videos to the client for final confirmation and acceptance before delivery. The complete 1tph small scale palm oil extraction plant was successfully shipped on December 12, 2025.

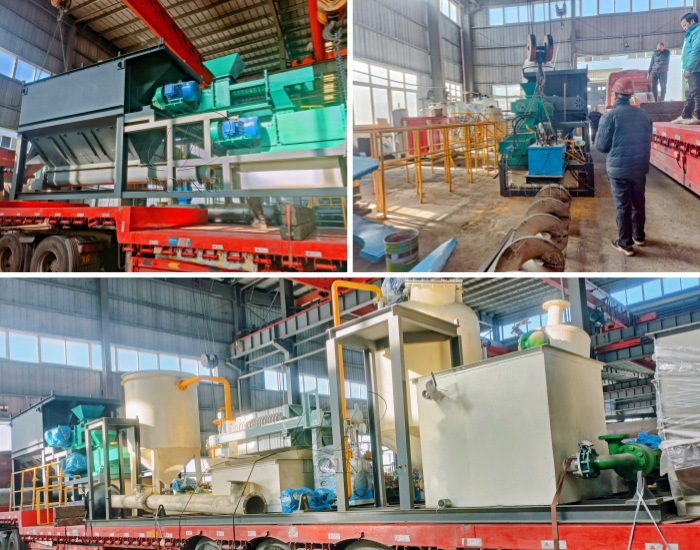

Shipping site of 1tph small scale palm oil extraction plant

Installation & Commissioning & Project Completion (Feb - Mar 2026)

As this is an integrated, pre-assembled system, its installation timeline was significantly shorter than that of a traditional palm oil extraction plant. The 1tph small scale palm oil extraction plant arrived at the client's facility in early 2026. Our technical team provided technical guidance regarding power connections and on-site piping hookups. The entire system completed commissioning and entered trial operation on March 15, 2026; the process proceeded smoothly and efficiently, fully meeting his expectations. He highly praised the 1tph small scale palm oil extraction plant's production efficiency, ease of operation, and convenient installation—factors that have laid a solid foundation for future expansion of his palm oil processing capacity.

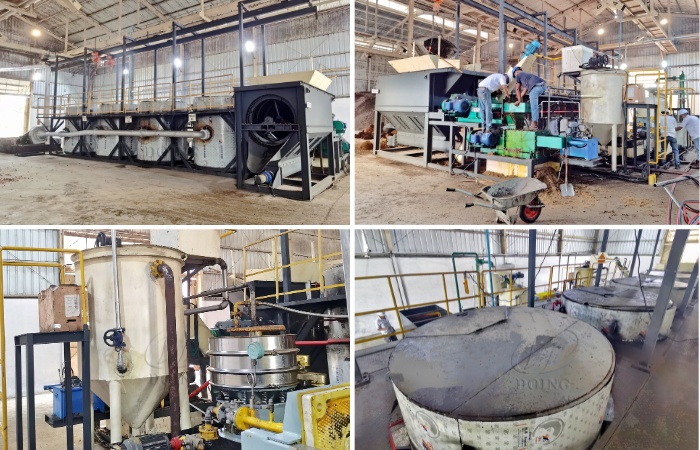

1tph palm oil extraction plant Installation site of 1tph small scale palm oil extraction plant

Recommended Reading: This 1tph small scale palm oil extraction plant is an ideal solution for startup palm oil producers or those with limited installation capabilities. For larger capacities, we also offer 5tph, 30tph, 60tph, and 120tph palm oil mill plants, as well as standalone palm kernel oil pressing lines.

As a professional manufacturer of palm oil extraction equipment, Henan Glory Company has rich experience in palm oil extraction project design, equipment manufacturing, overseas installation, and technical training. We can provide customized palm oil extraction solutions according to different capacities, budgets, and factory conditions. Whether you need a small scale, medium scale or large scale palm oil extraction plant, we can recommend suitable equipment and provide professional technical support for your project. If you are planning to start a palm oil extraction business, please feel free to contact us for customized solutions and quotation information.
