Home use oil press machine

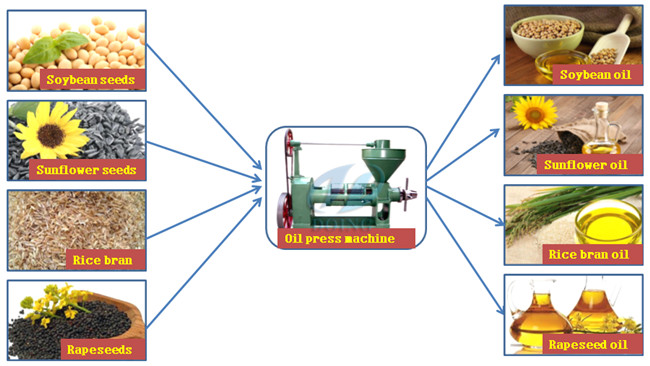

Home use oil press machine is a popular type of oil press machine.This home use oil press machine has its own features and markets.This home use oil press machine is ideal oil press machine for pressing various oil seeds, such as peanut, soybean, sesame, flax seed, etc; After pressed , the oil residual in cake is only about 5%. Home use oil press machine suitable for medium-small scale oil factory and private user, as well as the pre-pressing or extraction in edible oil factory.
Home oil press machine
Home use oil press machine structure：
Screw type oil press machine is a popular type home use oil press machine, mainly composed of feeder, gearbox, pressing chamber and oil receiver. Some screw type home use oil press machines are equipped with electric motors as required. Pressing chamber is the key part which contains a pressing cage and a screw shaft rotating in the cage. An electric cabinet is also necessary to control the whole working procedure.
Home Use Oil Press Machine Features:
Different from the automatic screw oil press machine, this small scale home use oil press machine has its own features and markets.
1. Made of high quality steel, wear-resistant and easy to clean.
2. With the properly designed pressing chamber, the increased pressure in the chamber highly improves working efficiency.
Gif image of home use oil press machine:
Home use cooking oil press machine
Home use oil press machine operating principle:
1.When home use oil press machine is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2. Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3. On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4. Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5. Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6. Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.
Why Choose Henan Doing Company Home Use Oil Press Machine?
1. Wide application: ideal home use oil press machine for pressing various oil seeds, such as peanut, soybean, sesame, flax seed, etc;
2. High oil yield : the oil output is 35% - 50% higher than common oil press machine.
3. Low residual: the oil residual in cake is only about 5%.
4. Little land occupancy: only 10-20 ㎡ is enough.
We offer customers home use oil press machine with different specifications. Here are the technical data.
DOING Group can supply various types cooking oil press machine for different oilseeds. Only tell me your raw materials and production capcity, we will recommend suitable for home use oil press machine , Industrial oil press machine, commercial oil press machine for you.
