Palm fruit threshing machine

The palm fruit threshing machine, also called a palm fruit thresher, palm fruit debuncher, or palm fruit stripper, is essential equipment used to separate palm fruits from fresh palm fruit bunches (FFB). Replacing slow and labor-intensive manual stripping with a mechanical thresher boosts efficiency, cuts labor costs, and delivers clean fruits ready for digestion and pressing. As a professional palm oil processing machine manufacturer with years of industry experience, Henan Glory Company offers two high-performance palm fruit threshing machines: the simple-type and the drum-type, designed to match production needs from small plantations to large-scale palm oil mills.

How Does a Palm Fruit Threshing Machine Work?

After sterilization, palm fruit bunches are transported by a dump truck to a bucket elevator and elevated into the palm fruit debuncher. Depending on the machine type, the separation mechanism differs:

Simple-Type Thresher Working Principle

The operator holds the palm fruit bunch against a rotating stirring rod. The 4 kW electric motor drives the main shaft at 480 r/min, and the specially engineered threshing components gently yet effectively strip the fruits from the bunch. The fruits automatically fall off the rotating roller and are collected below. This semi-automatic palm fruit stripper is ideal for small-scale operations.

Drum-Type Thresher Working Principle

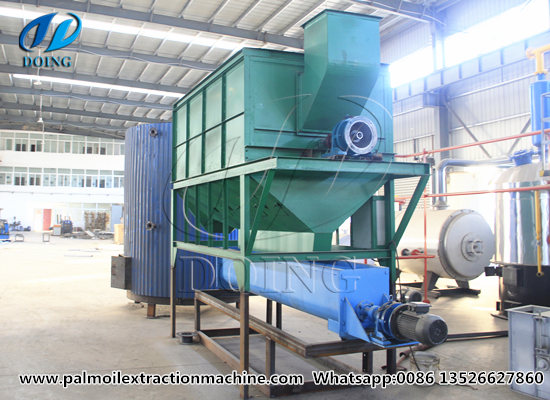

A long horizontal drum rotates at high speed inside the machine. As palm fruit bunches move through the drum, they are subjected to strong centrifugal force combined with mechanical friction and impact from internal stripping bars. Palm fruits are forcefully separated and fall through the grating holes at the bottom of the drum, collected by a screw conveyor (typically 2.5 meters or more in length), then transported to the next processing stage. Empty fruit bunches (EFB) are automatically discharged from the opposite end of the drum for biomass reuse.

Separated palm fruits proceed to the digestion and palm oil pressing process, while empty fruit bunches (EFB) can be used as biomass fuel for the boiler or transported back to the plantation as organic fertilizer.

Why Is Palm Fruit Threshing Important for Your Palm Oil Mill?

The palm fruit threshing machine plays a critical role in the palm oil mill process. Individual palm fruits are essential for ensuring the quality of the final palm oil. Here’s why investing in a quality industrial palm fruit thresher pays off:

- Improves Oil Quality: Individual fruits are easier to press completely, maximizing the palm oil extraction rate and delivering higher-quality crude palm oil (CPO).

- Reduces Contamination: Mechanical threshing separates impurities and debris from the fruit before pressing, producing cleaner crude palm oil with fewer refining requirements.

- Reduces Labor Costs: Automated mechanical threshing eliminates the need for large manual stripping crews. One operator can manage the machine while achieving outputs that would require dozens of workers by hand.

- Boosts Efficiency: A mechanical thresher can process dozens of times more bunches per hour than manual labor. For example, the drum-type thresher handles up to 15 tons of FFB per hour.

- Minimizes Fruit Damage: Optimized threshing components reduce bruising and preserve raw material integrity, which directly translates to higher oil yield in the pressing stage.

- Enables Continuous Production: The drum-type thresher supports fully automatic continuous operation, meaning your palm oil mill can run around the clock with minimal manual intervention, while empty fruit bunches (EFB) are automatically collected for reuse as charcoal making machine feedstock or boiler fuel.

Two Types of Palm Fruit Threshing Machines from Henan Glory

Henan Glory Company has been dedicated to manufacturing palm oil processing machines for many years. According to different processing capacities and production requirements, we can provide two main types of palm fruit debunchers, as shown below:

Type 1: Simple-Type Palm Fruit Thresher

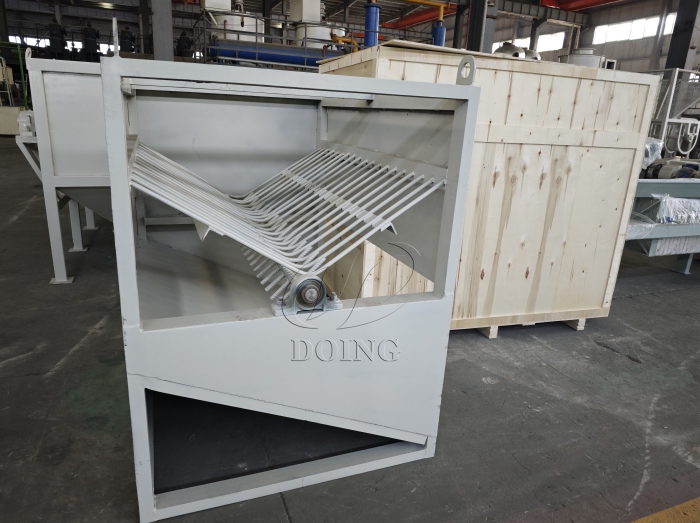

The simple-type palm fruit thresher

Also called a small palm fruit stripper, the simple-type palm fruit thresher features a compact, integrated design that is easy to install, operate, and maintain. It is specifically engineered for small-scale operations and is the ideal entry-level palm fruit stripping machine choice for small palm fruit plantations, family workshops, and startup palm oil processing plants.

Main Parameters:

Outstanding Features:

1. Durable & Wear-Resistant: Built from high-quality carbon steel with excellent load-bearing capacity and corrosion resistance for long-term reliability in harsh operating environments.

2. High Threshing Efficiency: This palm fruit stripper operates at an optimal shaft speed of 480 r/min to ensure fast and thorough separation, maximizing hourly throughput.

3. Stable & Low-Noise Operation: The integrated structural design and high-quality transmission components significantly reduce vibration, ensuring smooth and quieter performance.

4. Low Fruit Damage Rate: Internally polished threshing components minimize damage to palm fruits during processing, preserving raw material quality for higher oil yield.

5. Easy Installation & Maintenance: Comes with a detailed manual and necessary accessories; users can complete assembly and commissioning independently without professional help.

6. Cost-Effective Investment: Offers an ideal balance of efficiency and affordability with a clear cost advantage over larger systems for small-scale operations.

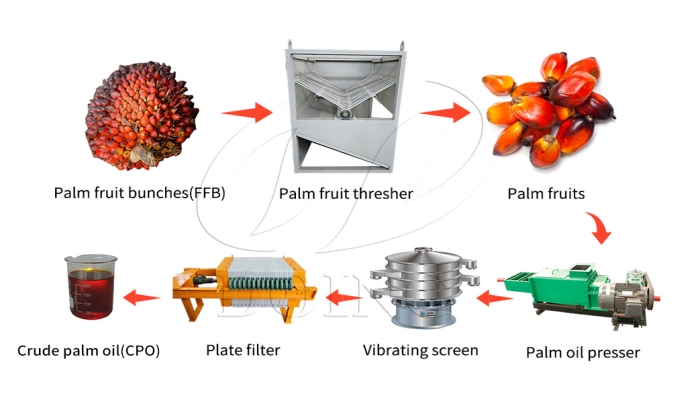

Small-scale palm oil production line

This small palm fruit thresher for sale can operate as a standalone unit or be seamlessly integrated with palm oil pressers, vibrating screens, and filters to form a complete small-scale palm oil production line.

Type 2: Drum-Type Palm Fruit Thresher

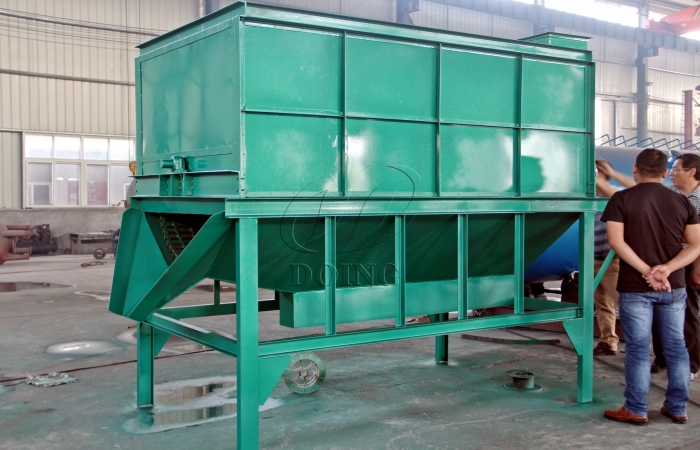

The drum-type palm fruit debuncher

The drum-type palm fruit debuncher is a core palm oil processing machine designed for medium and large-scale palm oil mills. It features a long horizontal drum that rotates at high speed to generate strong centrifugal force, combined with internal mechanical friction and impact, fully detaching palm fruits from the bunches.

Key Specifications:

Outstanding Features:

1. High-Efficiency Threshing: Long drum design combined with high-intensity centrifugal separation technology delivers dozens of times higher throughput than manual operation, covering the full range from 1 to 15 tons per hour.

2. Sturdy & Long Service Life: Heavy-duty steel main structure and #45 carbon steel main shaft ensure exceptional strength, wear resistance, and long-term stable running.

3. Easy Operation & Maintenance: High degree of automation enables continuous production; simplified machine design allows straightforward cleaning and routine maintenance without specialized technical personnel.

4. Resource Recycling & Cost Savings: Recovered empty fruit bunches (EFB) can be directly repurposed as boiler fuel or processed by a charcoal making machine into biochar, realizing efficient resource reuse and lowering overall energy consumption costs. Henan Glory also offers complete carbonization solutions for EFB and other palm oil mill biomass waste.

5. 12-Month Manufacturer Warranty: Backed by a full 12-month manufacturer warranty to minimize operational risks and provide long-term production support.

6. Complete Palm Oil Processing Machine Integration: This thresher seamlessly integrates with sterilizer, digesters, screw oil pressers, oil clarification equipment to form a full palm oil processing machine line, with empty fruit bunches (EFB) recycled as biomass fuel.

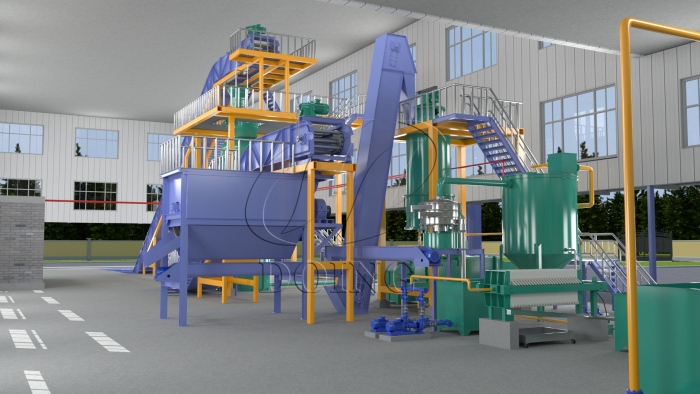

Complete palm oil processing line

In addition to drum-type palm fruit threshers, Henan Glory also offers complete palm oil processing lines including screw oil presses (from 1t/h to 15 t/h) and fully customized palm oil mill turnkey solutions.

How to Choose the Right Palm Fruit Threshing Machine?

Not sure which palm fruit stripping machine is right for your operation? Use the comparison below to find your best match:

Ready to boost your palm oil mill efficiency?

Contact Henan Glory Company today for a free quotation and customized layout design for your palm fruit stripper. Our engineers will recommend the right palm oil processing machines based on your FFB capacity, plant space, and budget.

Frequently Asked Questions (FAQ)

Q1: What happens to empty fruit bunches after threshing?

A: Empty fruit bunches (EFB) can be used as biomass fuel for the boiler — a cost-saving energy reuse strategy — or returned to the plantation as organic fertilizer.

Q2: Can the drum-type palm fruit debuncher be customized?

A: Yes. Henan Glory provides fully customized drum-type threshers with tailor-made drum lengths (up to 5000 mm), drum diameters (up to φ1800 mm), and screw conveyor configurations to match your exact capacity and plant layout.

Q3: Is the simple-type thresher difficult to install and maintain?

A: No. You can complete assembly and commissioning independently without professional help. Maintenance is minimal — primarily routine cleaning and basic lubrication.

Q4: Can empty fruit bunches be converted into charcoal?

A: Yes. Empty fruit bunches (EFB) are an excellent feedstock for charcoal making machines. Through carbonization, EFB is converted into biochar, wood vinegar, tar, and combustible gas. Henan Glory Company provides both palm oil processing machines and charcoal making machines, enabling palm oil mill owners to build a complete biomass waste-to-value system.
