50-1000tpd continuous palm oil refining machine

50-1000tpd continuous palm oil refining machine is used for removing the harmful impurities in the crude palm oil , it can effectively improve palm oil quality. 50-1000tpd continuous palm oil refining machine  can be used for refining various kinds crude vegetable oil,such as sunflower seed oil, soybean seed oil, groundnut oil, cottonseed oil, rice bran oil, corn germ oil and palm oil, etc.There are more and more customers interest in this continuous palm oil refining machine.

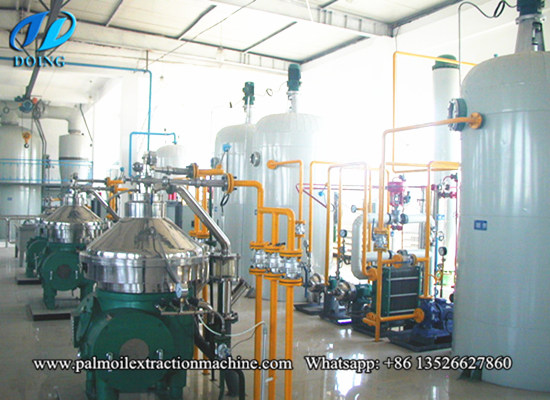

continuous palm oil refining machine
50-1000tpd continuous palm oil refining workshop

Our company is specialized in palm oil refining machine. We can provide the palm oil refining machine from 1 ton to 1000 tons. In general, batch type palm oil refining machine is with capacity 1-20TPD;  The semi-automatic palm oil refining machine is suggested with capacity from 20-50TPD; And continuous palm oil refining machine is used for capacity above 50TPD. Of course, this is just an option, not necessary. Our engineer can help you design the whole palm oil refining machine according to your capacity and requirements.

   1.Batch type palm oil refining machine
Capacity (Ton/Day) 1-20tpd
Application:
Process almost all kinds of crude oil for edible purpose: vegetable oil, palm oil, castor oil, sunflower oil, rice bran oil, soybean oil, canola oil, cottonseed oil, mustard oil, groundnut oil, etc.
Main equipment: Refining pot, Decoloring pot, Deodorization tank, Steam generator, Vibrate filter, Electricity distribution control, Air compressor
2.Semi-continuous palm oil refining machine
Capacity (Ton/Day) 20-50tpd
Application: Process almost all kinds of crude oil for edible purpose: vegetable oil, palm oil, castor oil, sunflower oil, rice bran oil, soybean oil, canola oil, cottonseed oil, mustard oil, groundnut oil, etc.
Main equipment: Refining reactor, Decolorization reactor, Vibrating filter, Deodorizing tower, Deodorized oil pump, Centrifugal water pump, Heat conductive oil furnace
3. Fully continuous palm oil refining machine
Capacity (Ton/Day) 50-1000tpd
Application: Process almost all kinds of crude oil for edible purpose: vegetable oil, palm oil, castor oil, sunflower oil, rice bran oil, soybean oil, canola oil, cottonseed oil, mustard oil, groundnut oil, etc.
Main equipment: Washing centrifuge, Vacuum dryer, Decolorization tower, Decolorization oil pump, Plate filter, Deodorization tower, Cooling tower, Thermal oil furnace
small scale palm oil refining machine
Batch type palm oil refining machine

semi-continuous palm oil refining machine
Semi-continuous palm oil refining machine

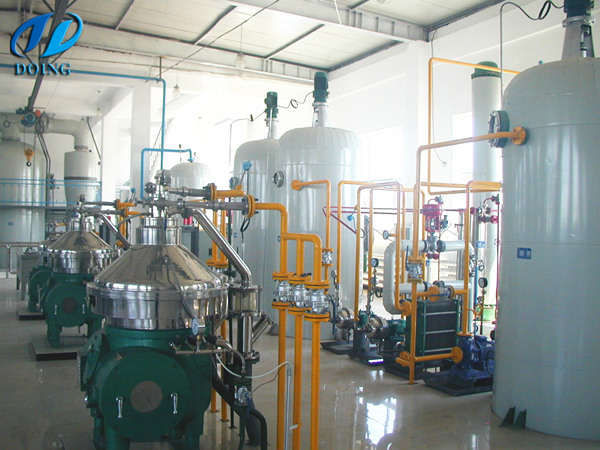

continuous palm oil refining machine
Continuous palm oil refining machine


Palm oil refining steps:
The typical steps in the palm oil refining line includes Degumming section, Neutralizing section, Decolorization/ Bleaching section, Deodorizing section.


palm oil refining process
Palm oil refining steps

Palm oil refining process flow chart as follows:
palm oil refining process flow chart
Palm oil refining diagram



Operation process of 50-1000tpd continuous palm oil refining machine:
(1)pump crude palm oil into refining tank and heat with conduction oil, and the temperature will reach about 70°C-80°C after one hour.
Add acid or alkali to separate according to the acid value. After one hour's processing and 4-6hours deposit, then convey soap stock to storage tank.
(2)Pump refined palm oil into de-coloring tank. When it is up to 90-110°C after one hour's heating, add clay into tank for 20min's processing. Then separate clay and oil with filter.
(3)Put discolored palm oil into deodorization tank with vacuum pump. Heat and process with steam for odor removal. After filtering, you will get final oil product.

Main process of 50-1000tpd continuous palm oil refining machine


palm oil refining machine
Palm oil degumming and de-acidification machine


1. Degumming and De-acidification Section:
Palm oil degumming and de-acidification section uses washing method to separate soap residual from mixing oil, providing preparation for next step palm oil refinery process.


palm oil decolorization machine
Palm oil decolorization machine


2. De-colorization Section:
Palm oil de-colorization section is mainly used to remove oil pigment, residual soap and metal ions during palm oil milling process.


palm oil deodorization machine
Palm oil deodorization machine
3. Deodorization Section:
Palm oil deodorization section composes of part of crude palm mill processing equipment. It plays important part in improving oil quality after crude palm oil process.


palm oil fractionation plant
Palm oil fractionation plant
4. Fractionation section:
Palm oil fractionation plant devides into 3 parts, crystallazing, crystall growing/maturing, and filtration. After palm oil fractionation plant, palm oil is separated to several parts with different melting points, which can be used in different industrial usages.

Economic & technical Index of 50-1000tpd continuous palm oil refining machine( degumming, deacidification, bleaching, deodorization)

Power consumption  ≤28 KWH/ton oil
Steam consumption  ≤360~420 Kg/ton oil
White earth consumption ≤8~20 kg/ ton oil
Caustic soda ≤7 kg/ ton oil(according to crude oil acid
Phosphoric acid ≤1.0 kg/ ton oil


Water consumption  Circulating water  60~65t/h
Water consumption  0.25~0.3t/ton oil

Doing Company has been specialized in palm oil refining machine for decades. And our palm oil processing machine's technology and quotation are both our advantages to compete with other companies. If you are interested in palm oil processing machine or palm oil refinery machine, please feel free to contact us. Our professional engineers can help you design and install according to your capacity and requirements.

Besides palm oil refining machine we can also offer as follows:
0.5-1tph small palm oil mill machine;
1-20tph medium palm oil press machine;
30-120tph large palm oil press machine;
5-10tpd small palm kernel oil production machine;
30t-100tpd medium palm kernel oil press machine;
100-1000tpd large palm kernel oil press machine;
