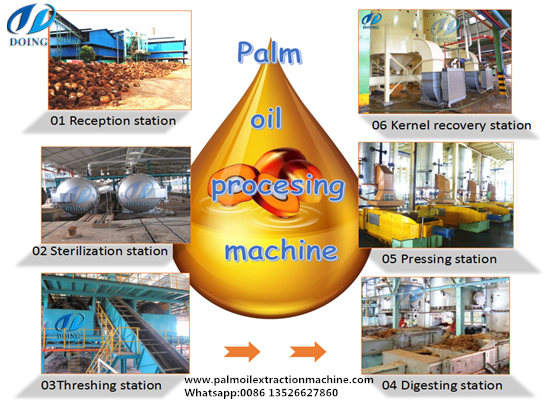

Process flow chart of palm oil production process:
Palm oil production process flow chart
Palm oil production process includes 6 parts: Palm bunches receiving, sterilizer, threshing, digesting & pressing, crude oil clarifying and palm kernel recovery.

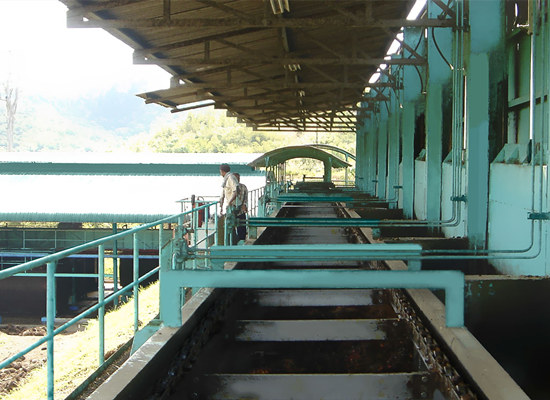

1. Reception section:
Collecting the ripe fresh cluster from the orchard and convey by trucks, then pour the fluster into the discharge door after weighed by ground weigher . The discharge door has discharging channels, the upper and lower switches of the iron gate are controlled by pneumatic, Pneumatic control system consists of air compressor and pneumatic control devices. Start the control valve to open the gate of the discharge door, then the palm fruits will fall into the fruit basket car or conveyor.
Palm fruit bunches
Fresh palm fruit bunch are airtight sterilized in sterilizer, injecting direct steam (the pressure is 300KPa) to heat 60mins. The purpose is to prevent enzymes broken down, avoiding FFA content in oil further increase.
Palm fruit sterilizing machine
The purpose of threshing in palm oil production process is to separate the palm fruit from the FFB. The drum type thresher is the usual machine to separate the fruit. The separated oil palm fruit is sent into the pressing section. Empty fruit bunch be ejected to the yard from the other side of the revolving drum, or shipped out from the plant as palm orchards slipcover to recycling use, or burning in the locale as fertilizer for agricultural land.
Palm fruit threshing machine
There is also the steam heater in digesting section. The purpose of digesting is to separate the pulp and nut and crush the palm pulp. At the same time, the steam is used to cook the palm fruit and broke the cell of pulp. Because of cooking, sterilizing, threshing and digesting in palm oil production process made the pulp soft and damage pulp cell structure, the palm pulp becomes soft and cell is broken. Then it is sent to continuous screw palm oil press machine. After pressing, oil palm fruit is divided into two parts: the mixture of oil, water and solid impurities, and the press cake (fiber and nut).
Palm fruit digesting & pressing machine
Palm oil clarifying section is the main equipment in palm oil production process.Machine-pressed crude oil first diluted with water washing, through settlement and filtration, the fiber material removed from the oil, and then carry out continuous settlement, the whole divided into two parts: oil and sediment. Oil by centrifugal separation and through vacuum drying pumped into the storage tank for storing; oil sediment by filtration and dirt oil separation, oil process second settlement, dirt oil mixture process clarification separation, Skim oil then carry out a second settlement, sewage pumps to sewage treatment pond for dealing with.
Palm oil clarifying machine
Press cake broken by breaking screw conveyor and then transported into the fiber separation air net and fiber polishing roller for fiber separating. The separated fiber material is sent to the boiler room as fuel; the separated palm kernel is transported to kernel warehouse by pneumatic conveying system for temporary storage.
Palm kernel recovery machine
Palm oil refining machine
Palm oil refining process
Types of palm oil refining machine:
1.Batch type palm oil refining machine,suitable for small capacity like 1-2-3-5-10TPD
2.Semi-continuous palm oil refining machine,suitable for medium capacity like 10-50TPD
3.Full continuous palm oil refining machine,suitable for large capacity above 30TPD
