Palm kernel crusher machine

In some places, palm kernel oil expeller machine also named palm kernel crusher machine. Palm kernel crusher machine is a machine that can expel palm kernel oil out for immediate consumption. These palm kernel crusher machines are designed for process palm kernel. Palm kernel crusher machine is ideal palm kernel oil making machine. It is featured of smooth operation, high capacity, low noise, energy consumption. The average capacity of palm kernel oil crusher machine range from 500kg/h to 1000tpd.

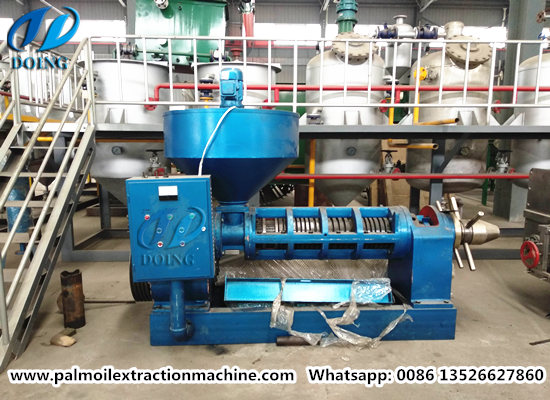

palm kernel oil crusher machineSmall scale palm kernel crusher machine.

Technical parameters of 500kg/h palm kernel crusher machine:

Model DY-ZX-2000
Capacity (kg/h) 500kg/h
Motor power 45kw
Oil Content of Dry Cakes(%) ≤ 7.4
Main Shaft Speed(r/min) 32-38r/min
Overall dimension (mm) 2670*1000*1726
Weight(kg) 1800kg

Working princple of palm kernel crusher machine:

1.When palm kernel crusher machine is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.

2. Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials. On the other hand, root diameter of the pressing screw carries larger from one end to the other. Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well. Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.

3. After palm kernel crushing process, we can get most of palm kernel oil.

palm kernel oil crusher machinePalm kernel oil crusher machine

Besides small scale palm kernel crusher machine, we also supply small scale palm kernel oil extraction machine and large scale palm kernel oil processing machine. Users can choose suitable for palm kernel oil processing machine according to the detail situation.

palm kernel oil processing machineLarge capacity palm kernel oil processing machine

Henan Glory Company are the expert in palm kennel oil processing machine manufacturing industry. We can supply highly efficient, durable and flexible palm kernel crusher machine , palm kernel oil processing machine for our customers. We guarantee that all palm kernel oil processing machine meets international technical standards.
